Red White LSZH Fire Alarm Cable Fireproof for Alarm Systems

Haoguang Red White LSZH Fire Alarm Cable Fireproof for Alarm Systems often used in building Management Systems(BMS),control and instrumentation, like voice alarm systems, emergency and escape lighting and other essential service control circuits. This products are manufactured with latest technology to ensure consistent quality and reliability. We use good quality LSZH sheath and pure copper and top quality insulation material. The range of products includes flame retardant cables. Welcome to inquiry.

Send Inquiry

Product Description

1.Introduction of Red White LSZH Fire Alarm Cable Fireproof for Alarm Systems


This Red white LSZH fire alarm cable are manufactured with latest technology to ensure consistent quality and reliability. We use good quality LSZH sheath and pure copper and top quality insulation material. The range of products includes flame retardant cables. The cables are slow to catch fire and making it easier for people to escape in the event of a fire.We offer OEM service.

Application :
LSZH sheath Fire Resistant Alarm cables (2 cores )often used in building Management Systems(BMS),control and instrumentation, like voice alarm systems, emergency and escape lighting and other essential service control circuits.




2.Parameter (Specification) of Red White LSZH Fire Alarm Cable Fireproof for Alarm Systems.


Max Operating voltage: 300/500V
Operating Temperature: from -20℃ to 90℃

Part Number

Number of Cores

Conductor Cross Section

sqmm

Conductor Construction

mm

Nom.Insulation Thickness

mm

Nom.Insulation Diameter

mm

Nom.Drain Wire Cross Section Thickness

sqmm

Nom.Sheath  Thickness

mm

Nom.Overall Diameter

mm

G210S

2

0.833

1x1.03

0.55

2.2

0.7

0.7

5.84

G215S

2

1.32

1x1.30

0.55

2.45

0.7

0.8

6.84

G225S

2

2.27

1x1.70

0.7

3.2

0.7

0.8

8.44

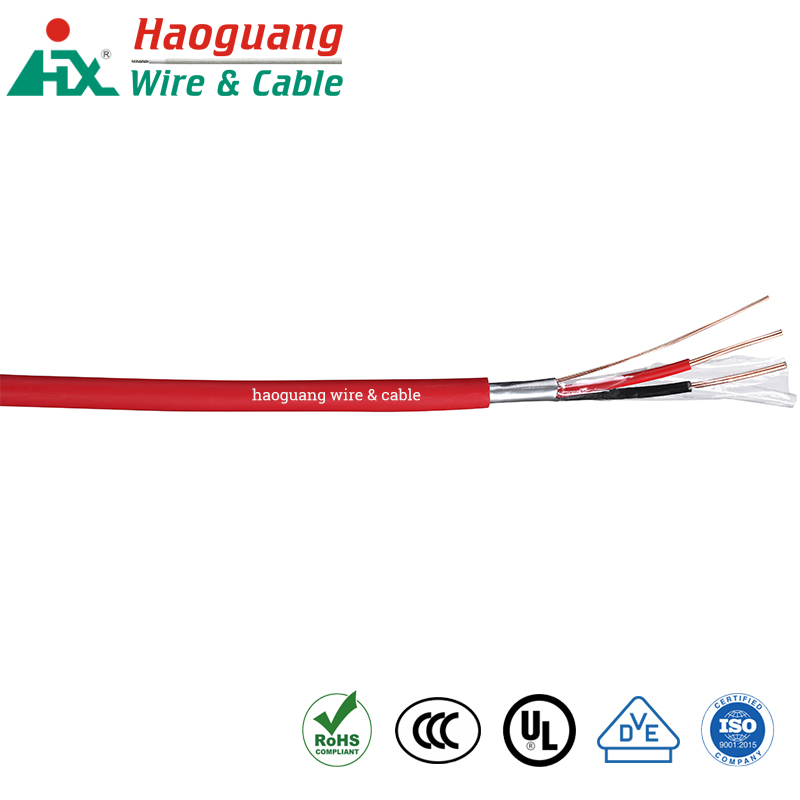

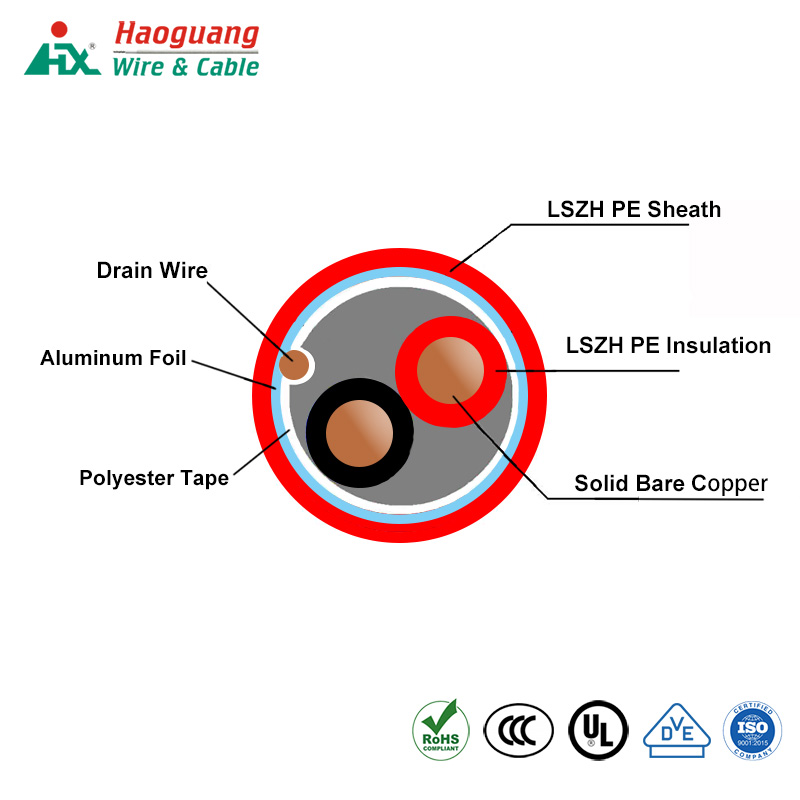

3.Feature of Red White LSZH Fire Alarm Cable Fireproof for Alarm Systems.



1) Conductor: Solid bare copper.
2) Insulation: LSZH, colour: Red(core 1), Black(core 2).
3) Drain wire(if applicable): Solid Tinned bare flexible copper.
4) Wrapping tape(if applicable): Polyester tape.
5) Screen (if applicable): Aluminium/Polyester tape.
6) Sheath Material: LSZH.





4.Details of Red White LSZH Fire Alarm Cable Fireproof for Alarm Systems.



1) High quality. OEM available.
2) Flexible order quantity. We can supply the cable to meet customer's requirement. But if we have stock,even 1 coil is acceptable for shipping.
3) Long lasting stability.
4) We have exported our cable to many countries.
5) LSZH = low smoke zero halogen = low smoke halogen free.
6) Brand: Haoguang. Made in China.



5.Packaging & Delivery



1) Packaging Details:
It is determined by the quantity and requirements you purchase. Can be negotiated. Wood roll, Wood pallet, PE firm wrapped.

2) Port: Ningbo,Shanghai

3)Delivery: By Sea, By Train, By Air, By express.








6 FAQ:



1)Are you a manufacturer or trading company?

We are a professional manufacturer. We can control your order from the first beginning to the last. Because we are the factory.



2)Can I order the cable/wire which is lower than your MOQ?

First, we will check the inventory.if it is in stock, sure, it’s ok! But if it was out of stock, when your quantity is close to our MOQ, it’s OK. If it is much less than MOQ, maybe we will take it as a sample order, the price will be different.



3) Are samples free shipping?

Sorry, it should be on customer side.



4) What is your terms of delivery?

We usually accept FOB, FCR,CIF etc.



5) Do you accept partial shipment ?

Yes, partial shipment is accepted. But the freight shall be covered by yourself.



6) Do you know the difference between fire resistant cable and flame retardant cables?

An important distinction exists between fire resistant cables and flame retardant cables, even though both of them are subjected to various fire performance tests in order to earn their respective classification. In brief, flame retardant cables are designed to resist the spread of fire into a new area. Fire resistant or fire rated cables are designed to maintain circuit integrity and continue to work for a specified period of time under defined conditions. The distinction between the two is crucial when it comes to maintaining critical circuits required for life safety or for a safe and immediate plant shutdown.
