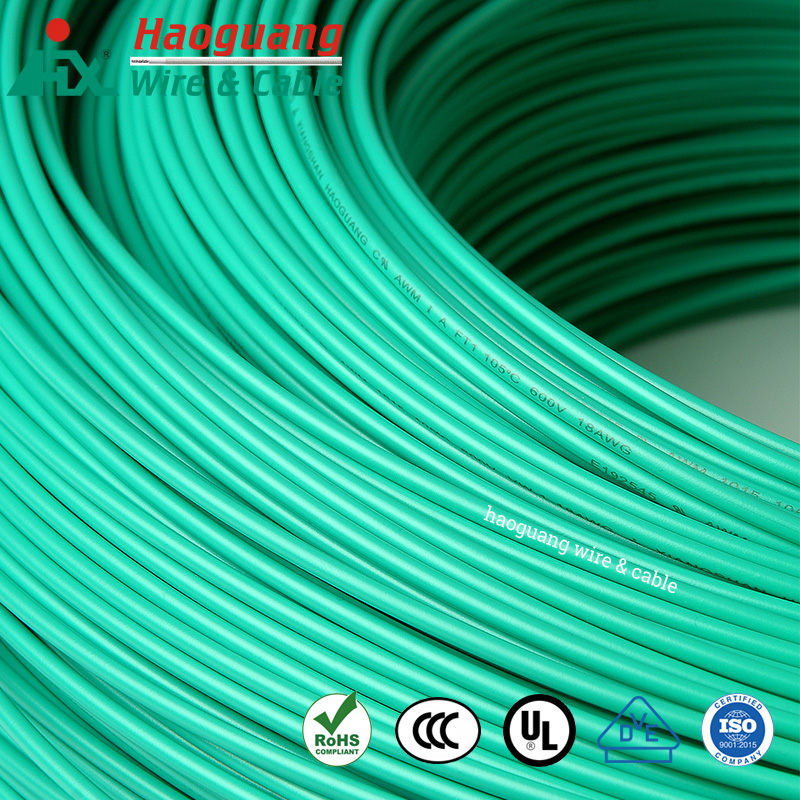

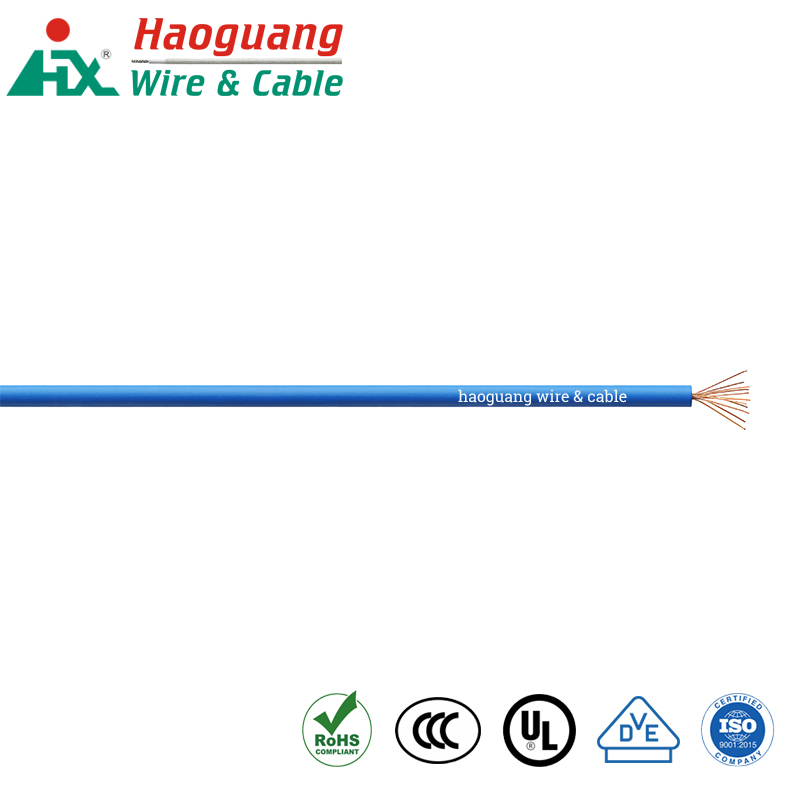

UL AWM 1007 PVC insulated RoHS Single Core Cable Hook-up

Haoguang UL AWM 1007 PVC insulated RoHS Single Core Cable Hook-up can be used for internal wiring of switchboards, electronic and electrical equipment. Its characteristics include tinned copper conductors, PVC insulation and a 300 volts rating, temperatures ranging up to 80°C. It passed flame test. Haoguan Cable provide support different kinds of cables for your application. Pls contact us to discuss your requirements.

Send Inquiry

Product Description

1.Introduction of UL AWM 1007 PVC insulated RoHS Single Core Cable Hook-up

UL AWM1007 PVC insulated hook up single core cable can be used for internal wiring of
electrical equipment. It passed flame test. The conductor is bare copper or tin-coated. Size spec from 16AWG to 30AWG.

Application:
This cable/wire is suitable for internal wiring of switchboards, electronic and electrical equipment, e.g. households, radio,televisions,monitor and control desks.

2.Parameter (Specification) of UL AWM 1007 PVC insulated RoHS Single Core Cable Hook-up

Rated Voltage: 300V
Rated Temperature: 80℃
Standard: UL758

Spec. AWG	Structure of Conductor No./mm	Insulation Thickness mm	Overall Diameter (mm)	Conductor Resistance at 20 ℃ Max
				Ω／km
26	7/0.16	0.38	1.3	150
24	12/0.15	0.38	1.4	94.2
22	18/0.15	0.38	1.55	59.4
20	30/0.15	0.38	1.75	36.7
18	47/0.15	0.38	2.0	23.2
16	42/0.2	0.38	2.3	14.6

3.Feature of the UL AWM 1007 PVC insulated RoHS Single Core Cable Hook-up

1) Materials: bare copper , flexible tinned copper.
2) Insulation: Extruded PVC, Flame retardant.
3)Temperature Range: -15℃ to +80℃.
4) Excellent aging resistance, even under extreme conditions

4.Detail of the UL AWM 1007 PVC insulated RoHS Single Core Cable Hook-up

2) Heat resistant.
3) High resistance to many different chemical substances chemical resistant.
4) Standard sizes and custom color available upon request.
5) Test method: UL VW-1 Vertical flame test.
6) Test Voltage:3000V
6) Brand: Haoguang.

5 Packaging & Delivery

1) Packaging Details:

It is determined by the quantity and requirements you purchase. Can be negotiated.

2) Port: Ningbo

Delivery: By Sea, By Air, By express.

6 FAQ:

1) What’s your Minimum Order Quantity?

Pls contact us for detail information.

2) Can I order the wire/cable which is lower than your MOQ ?

It depends. First, we will check the warehouse.if it is in stock, sure, it’s ok! If it is much less than MOQ, maybe we will take it as a sample order, the price will be different.

3) Does your company accept OEM production?

Yes.
