UL AWM 1569 Copper PVC Normal Hook-up Wire

Haoguang UL AWM 1569 Copper PVC Normal Hook-up Wire can be used for internal wiring of switchboards, electronic and electrical equipment. This lead wire characteristics include tinned copper and bared copper conductors, PVC insulation and a 300 volts rating, temperatures ranging up to 105°C. It passed flame test. Haoguan Cable provide support different kinds of cables for your application. Pls contact us to discuss your requirements.

Send Inquiry

Product Description

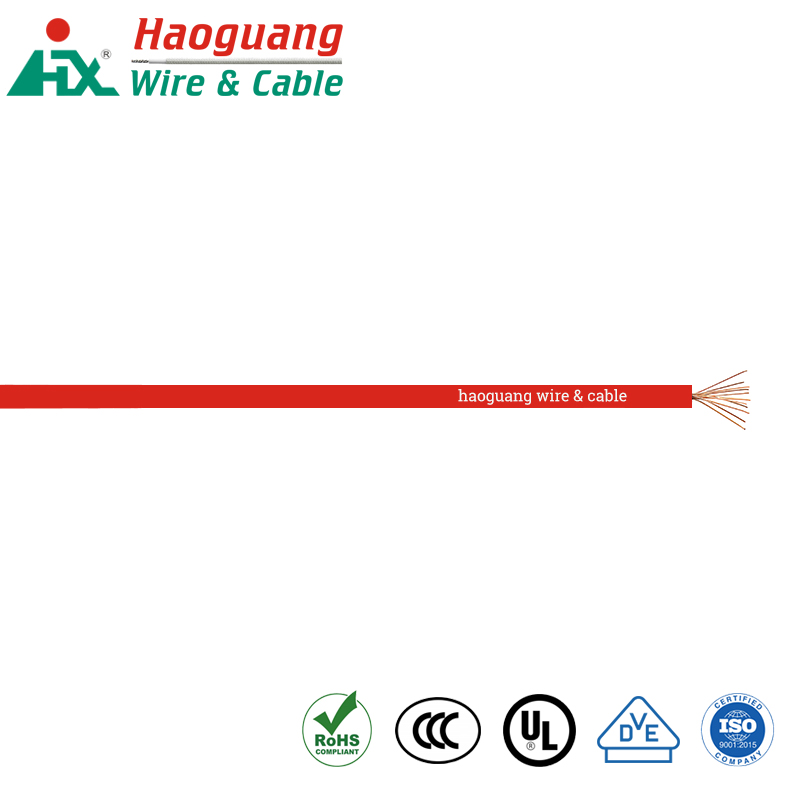

1.Introduction of UL AWM 1569 Copper PVC Normal Hook-up Wire


UL AWM 1569 Copper PVC Normal Hook-up Wire can be used for internal wiring of electrical equipment. It passed flame test. The conductor is bare copper or tin-coated. Size spec from 16AWG to 30AWG.

Application:
This cable are suitable for internal wiring of switchboards, electronic and electrical equipment, e.g. households, radio,televisions,monitor and control desks,electronic circuits.




2.Parameter (Specification) of UL AWM 1569 Copper PVC Normal Hook-up Wire


Rated Voltage: 300V
Rated Temperature: +105℃
Standard: UL758

Spec.

AWG

Structure of Conductor

No./mm

Insulation Thickness

mm

Overall Diameter

(mm)

Conductor Resistance at 20  Max

26

7/0.16

0.38

1.3

150

24

12/0.15

0.38

1.4

94.2

22

18/0.15

0.38

1.55

59.4

20

30/0.15

0.38

1.75

36.7

18

47/0.15

0.38

2.0

23.2

16

42/0.2

0.38

2.3

14.6



3.Feature of the UL UL AWM 1569 Copper PVC Normal Hook-up Wire



1) Materials: bare copper , flexible tinned copper.
2) Insulation: Extruded PVC. Extinguishing and Flame retardant.
3)Excellent aging resistance, even under extreme conditions.




4.Detail of the UL AWM 1569 Copper PVC Normal Hook-up Wire



2) Heat resistant.
3) High resistance to many different chemical substances chemical resistant.
4) Standard sizes and custom color available upon request.
5) Test method: UL VW-1 Vertical flame test.
6) Test Voltage:3000V
7) Temperature Range: -15℃ to +105℃.
8) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) What is your lead time ?

Generally 3 days for in stock cables and 10-15 days for customized cables.



2) Can I order the wire/cable which is lower than your MOQ ?

It depends. First, we will check the warehouse.if it is in stock, sure, it’s ok! If it is much less than MOQ, maybe we will take it as a sample order, the price will be different.



3) Is the quality of UL AWM 1569 Copper PVC Normal Hook-up Wire guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
