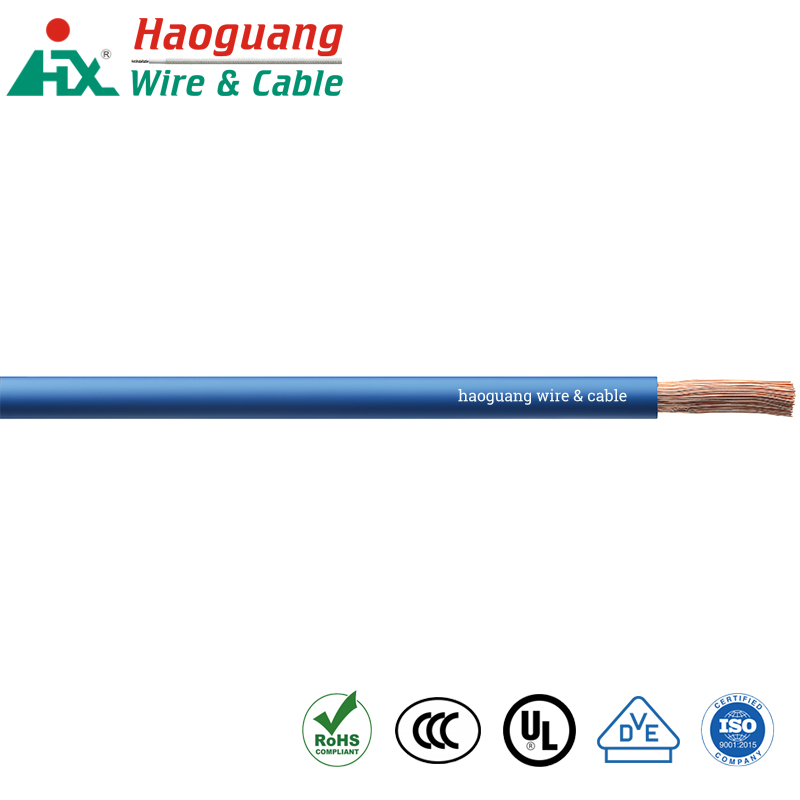

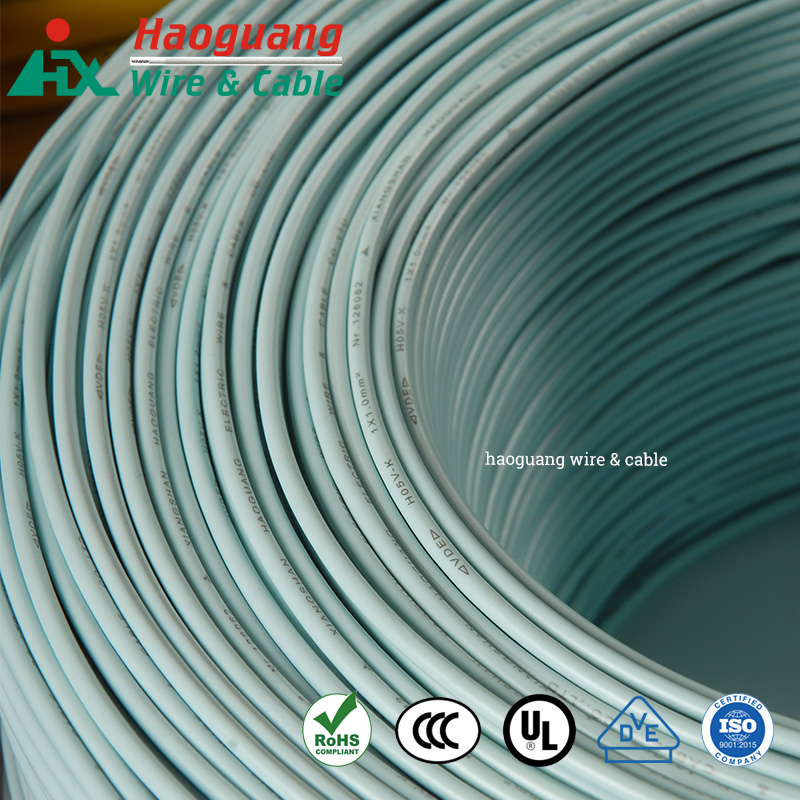

H05V-K H05V-U VDE Approved Normal Hook-up Wire

Haoguang H05V-K H05V-U VDE Approved Normal Hook-up Wire is designed for internal wiring in switch control, reply and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters,control cabinets and indoor installations. They also used in lighting devices and systems. Rated voltage up to 300/500 Volts. Welcome to inquiry.

Send Inquiry

Product Description

1.Introduction of H05V-K H05V-U VDE Approved Normal Hook-up Wire


H05V-K H05V-U VDE Approved Normal Hook-up Wire is designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Application: Interconnection in electrical equipment, lighting devices and systems,meter.




2.Parameter (Specification) of H05V-K H05V-U VDE Approved Normal Hook-up Wire


Rated Voltage: 300/500V
Rated Temperature: +70℃
Standard: DIN EN50525

Type

Conductor

Insulation Conductor

Electrical Characteristic

Nominal Area

mm

Structure of Conductor

No./mm

Insulation Thickness

mm

Overall Diameter

(mm)

Conductor Resistance at 20 ℃ Max

Min

Max

Ωkm

H05V-U

0.5

1/0.80

0.6

1.9

2.3

36

0.75

1/0.98

0.6

2.1

2.5

24.5

1.0

1/1.13

0.6

2.2

2.7

18.1

H05V-K

0.5

28/0.15

0.6

2.1

2.5

39.0

16/0.20

0.75

24/0.20

0.6

2.2

2.7

26.0

42/0.15

1.0

32/0.20

0.6

2.4

2.8

19.5



3.Feature of the H05V-K H05V-U VDE Approved Normal Hook-up Wire



1) Materials: Stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: Flexible Extruded Polyvinyl Chloride ( PVC).




4.Detail of the H05V-K H05V-U VDE Approved Normal Hook-up Wire



2) High resistance to many different chemical substances chemical resistant.
3) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
5) RoHS compliant,
7) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) Why PVC insulation ?

Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations. They are available in a number of sizes, colors and conductor materials. PVC properties make it suitable for applications where the cables may be exposed to extremely high or low temperatures, providing protection against degradation.



2) Could we provide the free sample for customer?

Yes, we could provide the free sample for customer for checking.



3) What is your payment method?

We usually receive payment by T/T 30% in advance, the balance before picking up the goods.
