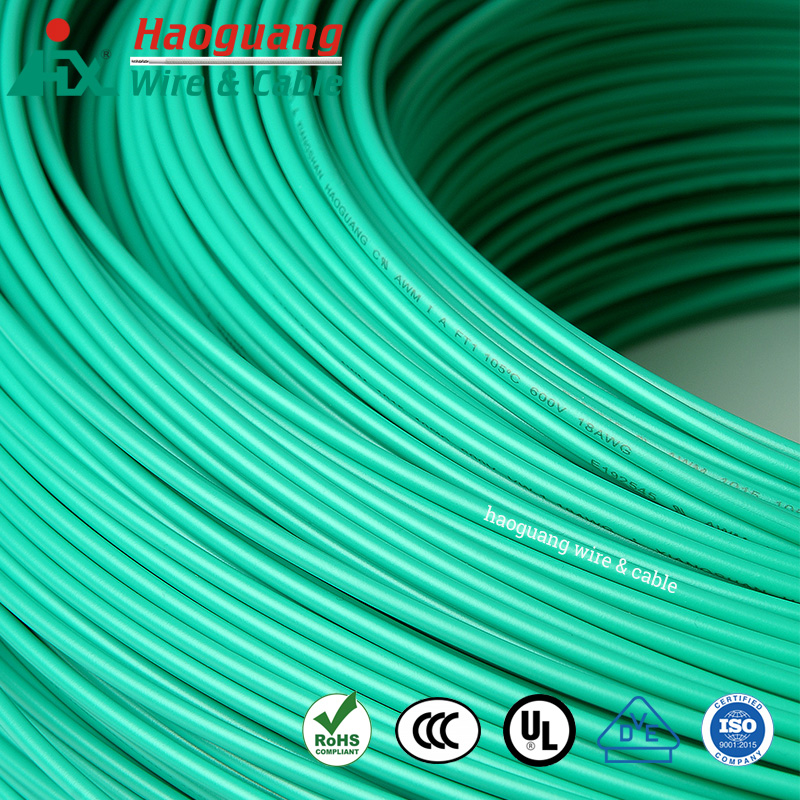

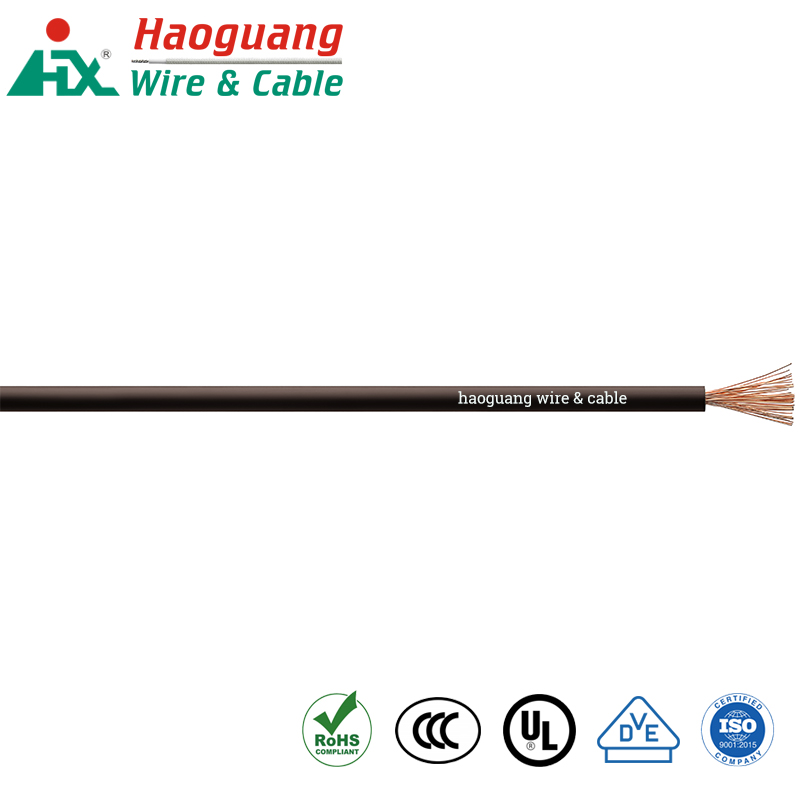

AWM UL 1015 PVC Single Core Hook-up Cable

AWM UL 1015 PVC Single Core Hook-up Cable is intended for use as the internal wiring of panels and electrical equipment. Our products have been engineered to survive harshest of environments like the crushing, high pressures of the ocean or sweltering heat or cold of arid lands. Welcome to inquiry.

Send Inquiry

Product Description

1.Product Introduction of AWM UL 1015 PVC Single Core Hook-up Cable


AWM UL 1015 PVC insulated single core hook-up cable is intended for use as the internal wiring of electrical equipment. These are used as connection wire in machines laid in protective tubes and flexible pipes and also for motors and transformers.

Application: internal leading wire of electrical equipment, households.




2.Product Parameter (Specification) of AWM UL 1015 PVC Single Core Hook-up Cable


Rated Voltage: 600V
Rated Temperature: +105℃
Standard: UL758

Spec.
AWG

Nominal Area
mm2

Structure of Conductor
No./mm

Insulation Thickness
mm

Overall Diameter
(mm)

Conductor Resistance at 20 ℃ Max

Ωkm

24

0.205

12/0.15

0.76

2.1

93.28

22

0.324

18/0.15

0.76

2.3

55

20

0.519

30/0.15

0.76

2.5

34.6

1/0.813

18

0.823

47/0.15

0.76

2.75

21.8

1/1.03

16

1.31

42/0.2

0.76

3.1

13.7

1/1.3

14

2.08

41/0.254

0.76

3.5

8.62

12

3.31

64/0.26

0.76

3.9

5.43

10

5.26

65/0.32

0.76

4.9

3.41



3 Product Feature of the AWM UL 1015 PVC Single Core Hook-up Cable



1) Materials: Stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: Extruded Polyvinyl Chloride (PVC). Flame,chemical and moisture resistant PVC.




4 Product detail of the AWM UL 1015 PVC Single Core Hook-up Cable



1) 2) High resistance to many different chemical substances chemical resistant.
3) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
4) Test method: UL VW-1 Vertical flame test.
5) RoHS compliant, UL listed.
6) Neither cracking at the high temperature 105℃, nor would turn hard in the cold -15℃.
7) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) Why PVC insulation ?

Colors are often used for wiring identification or branding purposes. Haoguan offer insulated wire in many different colours, including stripes.



2) We buy from supplier A,what is difference between your company with supplier A?

We focus on products quality, best service and long-run cooperation.



3) Does your company accept OEM production?

Yes.



4) What is spark test?

A spark test is an inline voltage test used either during cable manufacturing or during a rewinding process. Spark testing is primarily for low voltage insulations and medium voltage non-conducting jacket or sheaths. The test unit generates an electrical cloud around the cable which in high frequency AC units appears as a blue corona around the cable. Any pin holes or faults in the insulation will cause a grounding of the electrical field and this flow of current is used to register an insulation fault.
