AWM 20288 Plastic Parallel Multi Core Cable for Appliance Wiring
  • Air ProAWM 20288 Plastic Parallel Multi Core Cable for Appliance Wiring

AWM 20288 Plastic Parallel Multi Core Cable for Appliance Wiring

Haoguang AWM 20288 Plastic Parallel Multi Core Cable for Appliance Wiring is intended for use the decorative lighting string. It has AWG16&18 sizes and different kinds of colors. It is constructed in accordance with UL 758 standard,meets or exceeds flame test requirement. Guarantee long-term reliability. Welcome to inquiry.

Send Inquiry

Product Description

1.Product Introduction of AWM 20288 Plastic Parallel Multi Core Cable for Appliance Wiring

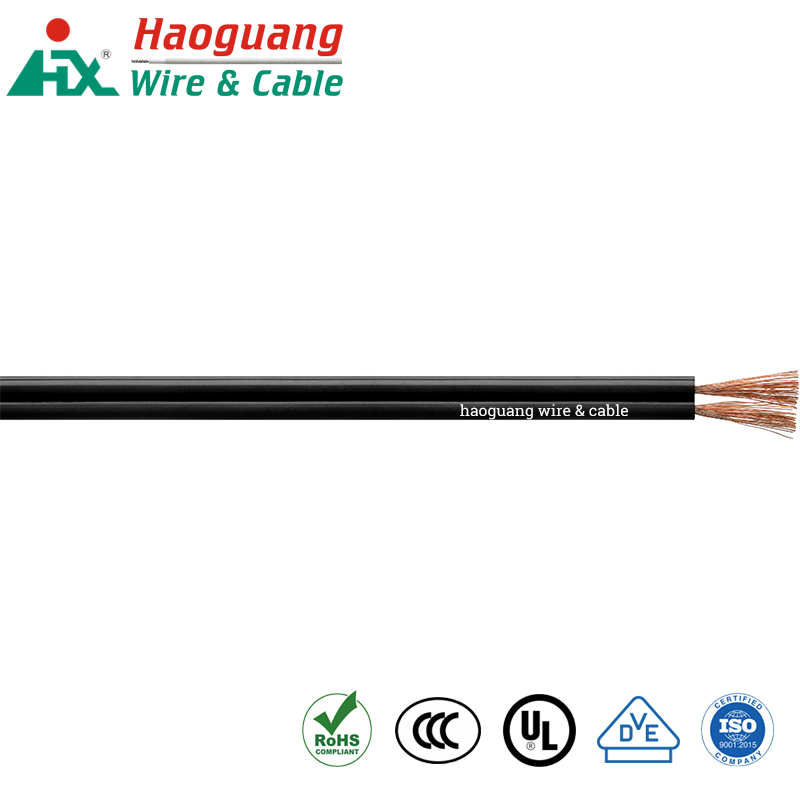

AWM 20288 Plastic Parallel Multi Core Cable for Appliance Wiring is intended to use in household appliances.It is 2 cores copper conductors. The conductor is bare copper or tin-coated, constructed in accordance with UL standard.

Application:
AWM20288 is often used as the decorative lighting string.




2.Product Parameter (Specification) of AWM 20288 Plastic Parallel Multi Core Wire for Appliance Wiring


Rated Voltage: 300V
Rated Temperature: +60℃~+105℃
Standard: UL758

Type

Spec
AWG

Nominal Area
mm2

Structure of Conductor
No./mm

Cores

Insulation Thickness
mm

Overall Diameter
mm

AWM 20288

18

0.823

47/0.15

2

1.02

3.25 x 5.8

16

1.31

42/0.20

2

1.02

3.65 x 6.75



3 Product Feature of the AWM 20288 Plastic Parallel Multi Core Wire for Appliance Wiring



1) Materials: Stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: Extruded PVC. Extinguishing and Flame retardant.
3) Uniform appearance, model manufacturer identification.




4 Product detail of the AWM 20288 Plastic Parallel Multi Core Wire for Appliance Wiring



1) Conditionally resistant to water oils,solvents, dyes,acids,Ozone.
2) High resistance to many different chemical substances chemical resistant.
3) Standard sizes and custom color available upon request (black, red, yellow,green,white…).
4) Test method: UL VW-1 Vertical flame test.
5) RoHS compliant, UL listed.
6) Neither cracking at the high temperature, nor would turn hard in the cold.
7) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) Why PVC insulation ?

PVC insulation is regularly used because of its excellent covering properties but high corrosion resistance. This makes it best suited for low and medium voltage cables with low-frequency insulation requirements.



2) What is your terms of delivery?

We usually accept FOB, FCR,CIF etc.



3) Is the quality of your products guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
