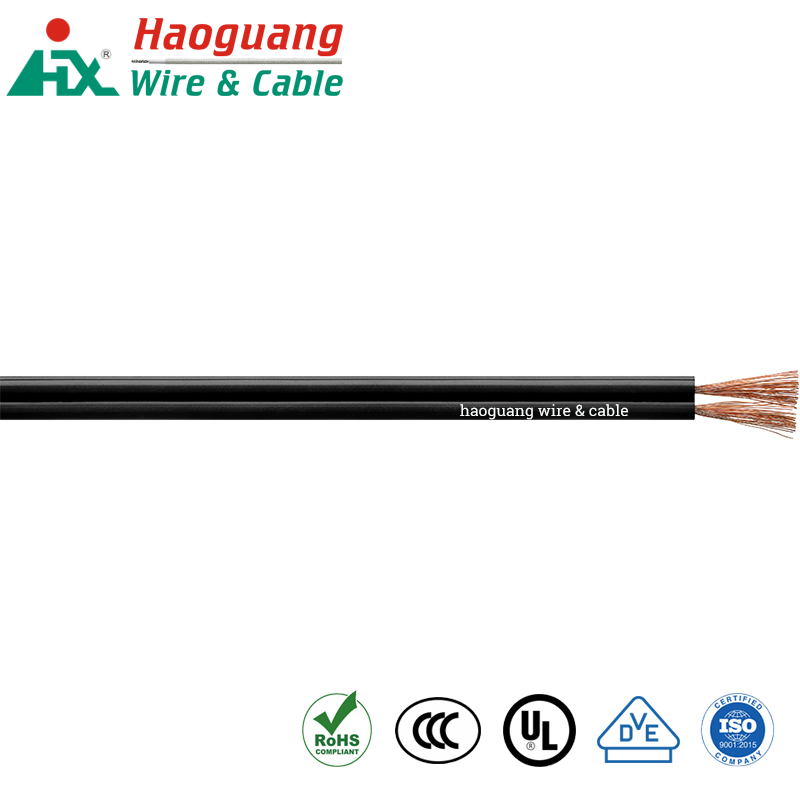

UL SPT Parallel PVC Insulated Multi Core Power Cable
  • Air ProUL SPT Parallel PVC Insulated Multi Core Power Cable

UL SPT Parallel PVC Insulated Multi Core Power Cable

Haoguang UL SPT parallel PVC insulated multi core power cable is intended for use the household appliances, including clocks,lamps, radios,fans and air conditioners. It have three types: SPT-1,SPT-2,SPT-3. It is constructed in accordance with UL standard,meets or exceeds flame test requirement. Haoguang Cable provide support different kinds of cables for your application. Pls contact us to discuss your requirements.

Send Inquiry

Product Description

1.Product Introduction of UL SPT Parallel PVC Insulated Multi Core Power Cable


UL SPT parallel lamp cords are intended to use in household appliances.It has four types: SPT-1,SPT-2,SPT-3. The conductor is bare copper or tin-coated, constructed in accordance with UL standard.

Application:
SPT-1,2 cable are suitable for internal wiring of household appliance. e.g.clocks, radios,lamps,fans.
SPT-3 cable (3 cores) are suitable for the illumination space wiring and the high load electrical equipment.




2.Product Parameter (Specification) of UL SPT Parallel PVC Insulated Multi Core Power Cable


Rated Voltage: 300V
Rated Temperature: +60℃~+105℃
Standard: UL62

Type

Spec

AWG

Nominal Area

mm2

Structure of Conductor

No./mm

Cores

Insulation Thickness

mm

Overall Diameter

mm

SPT-1

20

0.519

30/0.15

2

0.76

2.5 x 5.0

20

0.519

30/0.15

3

0.76

2.5 x 7.0

18

0.823

47/0.15

2

0.76

2.7 x 5.4

18

0.823

47/0.15

3

0.76

2.7 x 7.9

SPT-2

18

0.823

47/0.15

2

1.14

3.5 x 7.0

18

0.823

47/0.15

3

1.14

3.5 x 9.0

16

1.31

42/0.20

2

1.14

3.8 x 7.6

16

1.31

42/0.20

3

1.14

3.8 x 11.0

SPT-3

18

0.823

47/0.15

2

1.52

4.4 x 8.8

16

1.31

42/0.20

2

1.52

4.7 x 9.4

14

2.08

41/0.254

2

2.03

6.0 x 12.0

12

3.31

65/0.254

2

2.41

7.5 x 15.0

18

0.823

47/0.15

3

1.52

4.4 x 10.8

16

1.31

42/0.20

3

1.52

4.7 x 12.0

14

2.08

41/0.15

3

2.03

6.0 x 14.5

12

3.31

65/0.254

3

2.41

7.5 x 16.8



3 Product Feature of the UL SPT Parallel PVC Insulated Multi Core Power Cable



1) Materials: Stranded bare copper , High precision non-oxygen tinned copper.
2) Insulation: Extruded PVC. Extinguishing and Flame retardant.
3) Uniform appearance, model manufacturer identification.




4 Product detail of the UL SPT Parallel PVC Insulated Multi Core Power Cable



1) Conditionally resistant to water oils,solvents, dyes,acids,Ozone.
2) High resistance to many different chemical substances chemical resistant.
3) Standard sizes and custom color available upon request.
4) Test method: UL VW-1 Vertical flame test.
5) RoHS compliant, UL listed.
6) Neither cracking at the high temperature, nor would turn hard in the cold.
7) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) What is your lead time ?

Generally 3 days for in stock cables and 10-15 days for customized cables.



2) Can I order the wire/cable which is lower than your MOQ ?

It depends. First, we will check the warehouse.if it is in stock, sure, it’s ok! If it is much less than MOQ, maybe we will take it as a sample order, the price will be different.



3) Is the quality of your products guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
