CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable
  • Air ProCCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable
  • Air ProCCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable

CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable

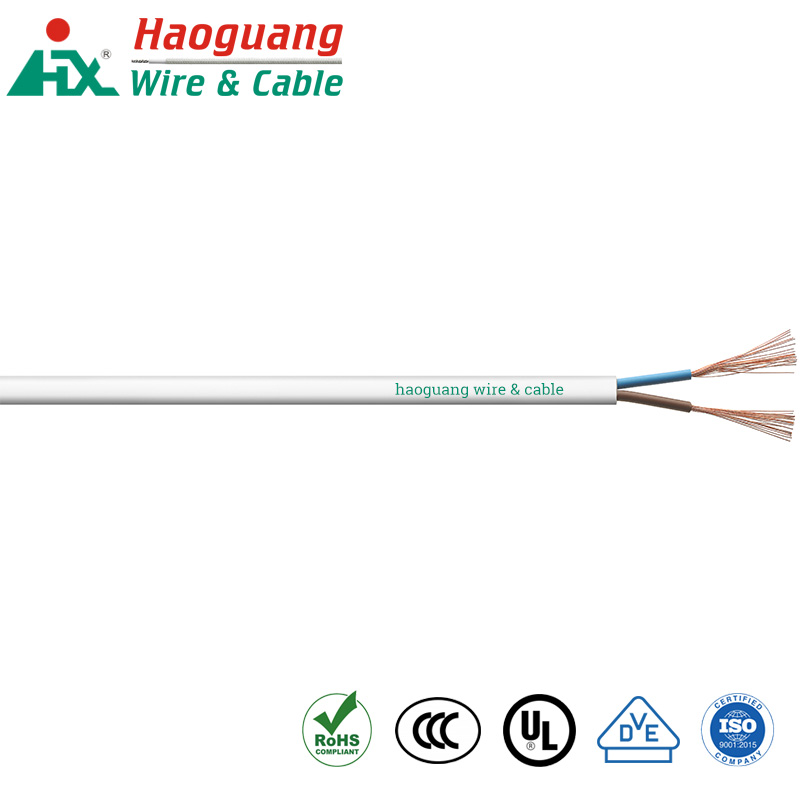

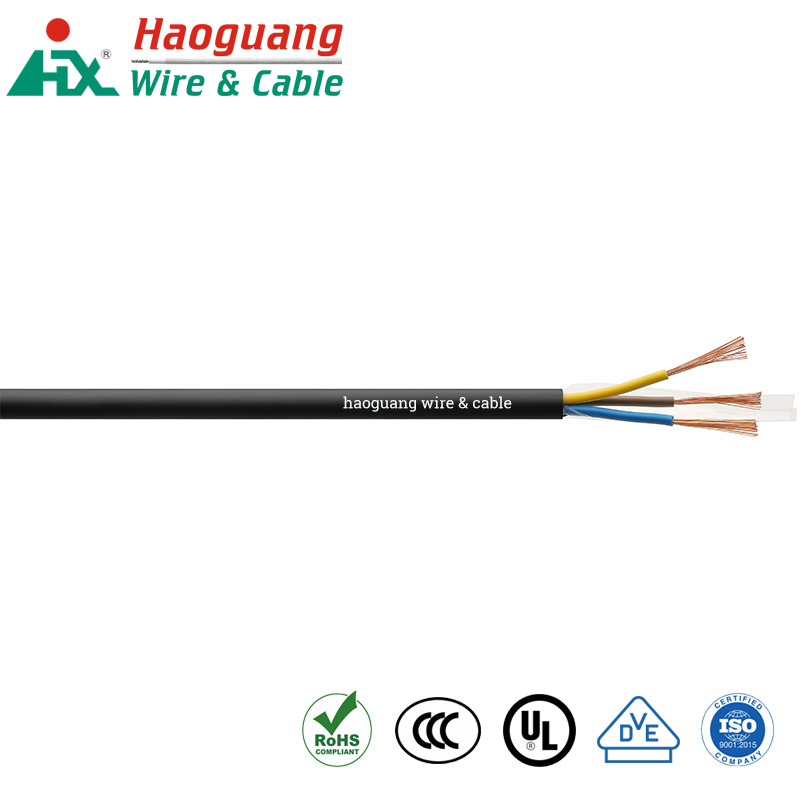

Haoguang CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable is suitable for the household appliances, plant and machinery,wiring purpose and for manufacturing cords.The outer sheath provided here is special PVC,self-extinguishing and flame retardant. Bare copper, fine wire conductor, there’re 2 cores and 3 cores options for you. Rated voltages is 300/500V.

Send Inquiry

Product Description

1.Introduction of CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable


Haoguang CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable is suitable for the household appliances, plant and machinery,wiring purpose and for manufacturing cords.The outer sheath provided here is special PVC,self-extinguishing and flame retardant.The outer PVC jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting.




2.Product Parameter (Specification) of CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable


Rated Voltage: 300/500V
Rated Temperature: 70℃
Standard: GB/T5023.5

Size

No. x  mm2

Structure of Conductor

No./mm

Insulation Thickness

mm

Sheath Nominal Thickness

mm

Outside Diameter

(mm)

Insulation Resistance at 70 ℃ Max

Min

Max

MΩ. km

2 x 0.75

24/0.20

0.6

0.8

5.7

7.2

0.011

42/0.15

2 x 1.0

32/0.20

0.6

0.8

5.9

7.5

0.01

2 x 1.5

28/0.15

0.7

0.8

6.8

8.6

0.01

2 x 2.5

42/0.15

0.8

1.0

8.4

10.6

0.009

3 x 0.75

24/0.20

0.6

0.8

6.0

7.6

0.011

42/0.15

3 x 1.0

32/0.20

0.6

0.8

6.3

8.0

0.01

3 x 1.5

48/0.20

0.7

0.9

7.4

9.4

0.01

3 x 2.5

51/0.25

0.8

1.1

9.2

11.4

0.009



3 Product Feature of the CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable



1) Conductor: Flexible stranded bare copper wire.
2) Insulation: PVC.
3) Jacket: PVC.




4 Product detail of the CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable



1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Outstanding resistance to abrasion, deformation.
4) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) IEC member including ?

Algeria, Argentina, Australia, Austria, Belarus, Belgium, Brazil, Bulgaria, Canada, Chile, China, Columbia, Croatia, Czech Republic, Denmark, Egypt, Finland, France, Germany, Greece, Hungary, India, Indonesia, Iran, Iraq, Ireland, Israel, Italy, Japan, Korea Republic of (South Korea), Libya, Luxembourg, Malaysia, Mexico, Netherlands, New Zealand, Norway, Oman, Pakistan, Philippines, Poland, Portugal, Qatar, Romania, Russian Federation, Saudi Arabia, Serbia, Singapore, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Thailand, Turkey, Ukraine, United Arab Emirates, United Kingdom, United States of America…



2) When I want customized CCC 60227 IEC 53 (RVV) PVC Jacket Multi Core Cable, how to do ?

We have professional service team, OEM & customized service is welcome. Drawings / samples are required.



3) What is your lead time ?

Generally 3 days for in stock cables and 10-15 days for customized cables.
