H03VV-F PVC Flexible Multi Core Cable for Home Appliance
  • Air ProH03VV-F PVC Flexible Multi Core Cable for Home Appliance
  • Air ProH03VV-F PVC Flexible Multi Core Cable for Home Appliance

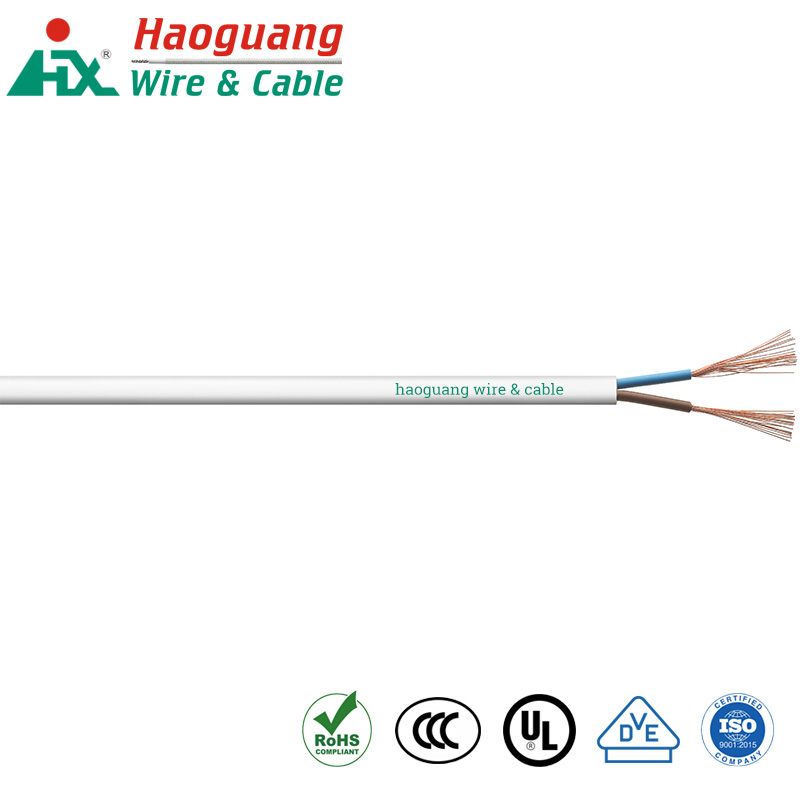

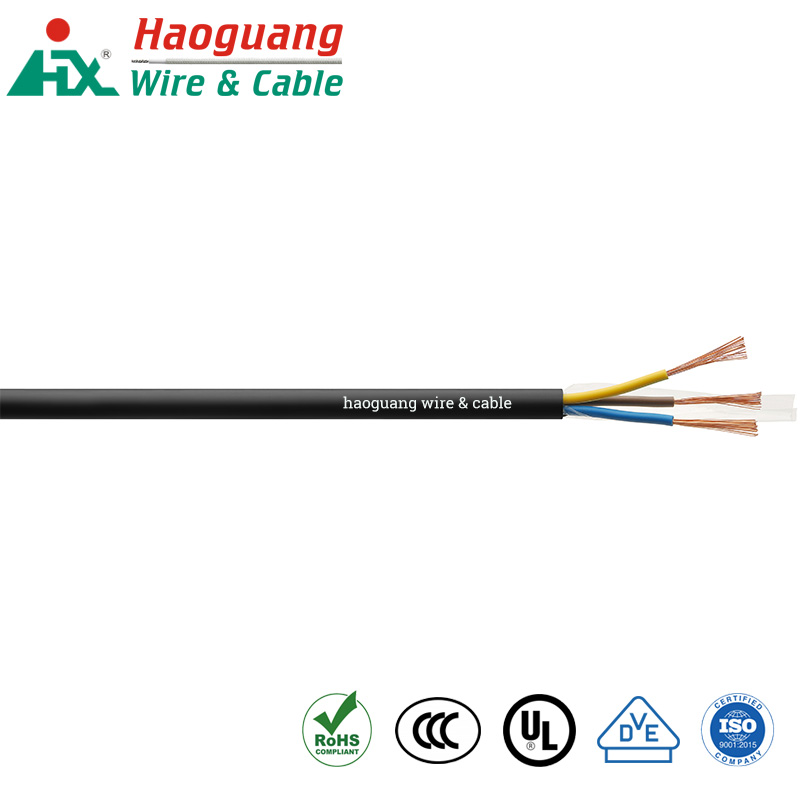

H03VV-F PVC Flexible Multi Core Cable for Home Appliance

Haoguang H03VV-F PVC Flexible Multi Core Cable for Home Appliance is suitable for the household appliances, plant and machinery,wiring purpose and for manufacturing cords. The outer sheath provided here is special PVC, self-extinguishing and flame retardant. The PVC jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting. Bare copper, fine wire conductor, 2 cores and 3 cores options for you. Rated voltage is 300/300V.

Send Inquiry

Product Description

1.Introduction of H03VV-F PVC Flexible Multi Core Cable for Home Appliance


Haoguang VDE H03VV-F PVC flexible multi core cable is suitable for the household appliances, plant and machinery,wiring purpose and for manufacturing cords.The outer sheath provided here is special PVC,self-extinguishing and flame retardant.The PVC jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting. Bare copper, fine wire conductor,2 cores and 3 cores options for you.




2.Parameter (Specification) of H03VV-F PVC Flexible Multi Core Cable for Home Appliance


Rated Voltage: 300/300V
Rated Temperature: 70℃
Standard: DIN EN50525

Size

No. x  mm2

Structure of Conductor

No./mm

Insulation Thickness

mm

Sheath Nominal Thickness

mm

Outside Diameter

(mm)

Insulation Resistance at 70 ℃ Max

Min

Max

MΩ. km

2 x 0.5

16/0.20

0.5

0.6

4.6

5.9

0.012

28/0.15

3*4.9

3.7*5.9

2 x 0.75

24/0.20

0.5

0.6

4.9

6.3

0.01

42/0.15

3.2*5.2

3.8*6.3

3 x 0.5

16/0.20

0.5

0.6

4.9

6.3

0.012

28/0.15

3 x 0.75

24/0.20

0.5

0.6

5.2

6.7

0.01

42/0.15



3.Feature of the H03VV-F PVC Flexible Multi Core Cable for Home Appliance



1) Conductor: Stranded bare copper wire.
2) Insulation: PVC.
3) Jacket: PVC.




4.Detail of the H03VV-F PVC Flexible Multi Core Cable for Home Appliance



1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation.
4) RoHS compliant.
5) High temperature/low temperature resistance.
6) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) Where is your factory located?

Add: No.226 Changing Road Xizhou,Xiangshan County,Zhejiang,China.



2) How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock.we can offer the samples immediately. If we don’t have the exact model you need, maybe we will send you similar sample if you accept. If you couldn’t accept, it will need 3~5 days to arrange sample developing.



3) Is the quality of H03VV-F PVC Flexible Multi Core Cable for Home Appliance guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.



7 FACTORY :
