60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire

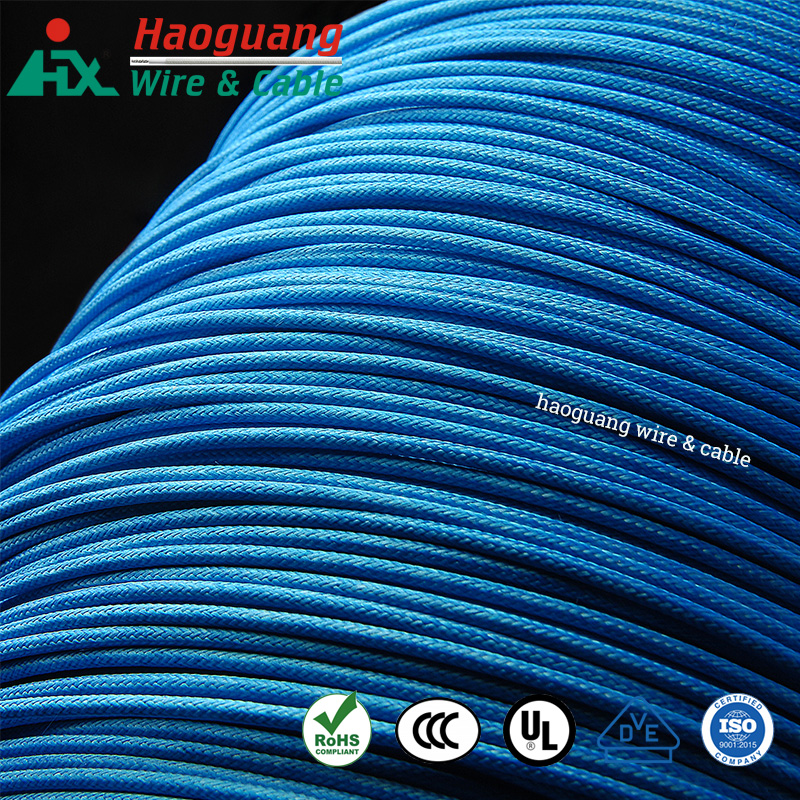

Haoguang 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire has good capacities of high voltage receivers, it is suitable for high temperature environment, such as electrical household appliance, lightening electrical equipment. The braided fiberglass jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting. flexible performance and RoHs compliance. Welcome for inquiry.

Send Inquiry

Product Description

1.Introduction of 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire


Haoguang 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire has good capacities of high voltage receivers, it is suitable for high temperature environment, such as electrical household appliance, lightening electrical equipment. The braided fiberglass jacket provide increased protection against hot surfaces, offering resistance to abrasion and cutting. Flexible performance and RoHs compliance.




2.Parameter (Specification) of 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire


Rated Voltage: 300V/500V
Rated Temperature: -60℃~+180℃
Standard: GB/T5013.3

Conductor

InsulatIon Conductor

Electrical Characteristic

Nominal Area
mm2

Structure of Conductor
No./mm

Insulation Thickness
mm

Fiber Glass Thickness
mm

Overall Diameter
(mm)

Conductor Resistance at 20 ℃ Max

Min

Max

Ωkm

0.5

28/0.15

0.6

0.15

2.6

3.3

40.1

16/0.20

0.75

24/0.20

0.6

0.15

2.8

3.5

26.7

42/0.15

1.0

32/0.20

0.76

0.15

2.9

3.7

20.0

1.5

48/0.20

0.76

0.2

3.4

4.2

13.7

2.5

51/0.25

0.76

0.2

4

5

8.21



3.Feature of the 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire



1) Conductor: Tinned copper.
2) Insulation: Silicone rubber.
3) Jacket: Braided glass fiber.




4.Detail of the 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire



1) Conditionally resistant to water,oils,acids,alkali.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation.
4) RoHS compliant.
5) High temperature/low temperature resistance.
6) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) Why certain cables have braiding?

The design of the crossing, interwoven wires allows for bending and stretching of the braiding without buckling, folding or kinking in the way the tapes might do as a result of a flexible application.When applied as a covering to the cable a braid can also serve to provide increased protection against hot surfaces, offering resistance to abrasion and cutting.



2) Where is your factory located?

Add: No.226 Changing Road Xizhou,Xiangshan County,Zhejiang,China.



3) Is the quality of 60245 IEC-03 Silicone Rubber Braided High Temperature Hook-up Wire guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.
