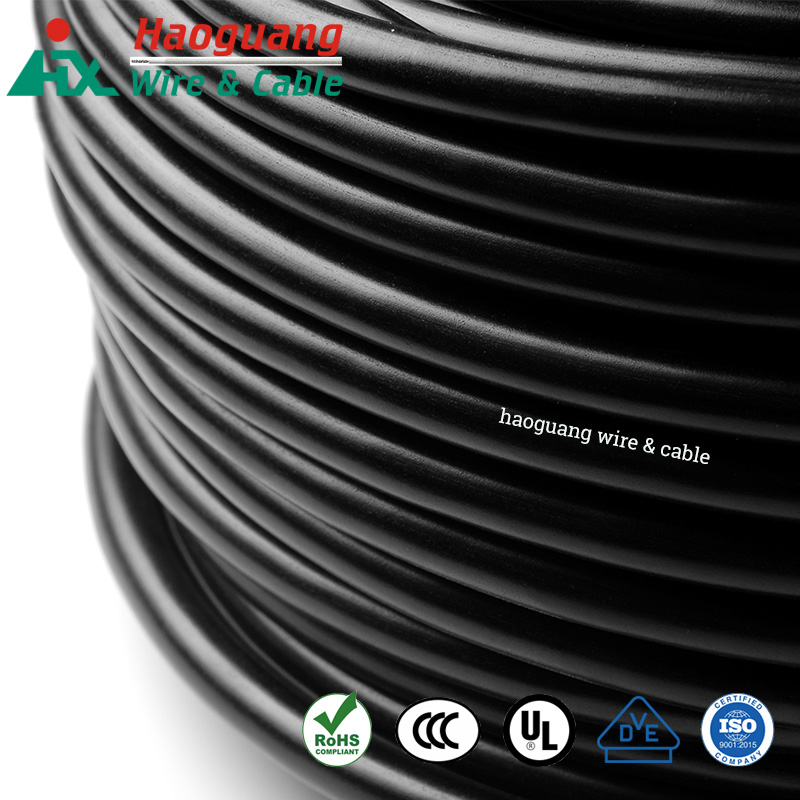

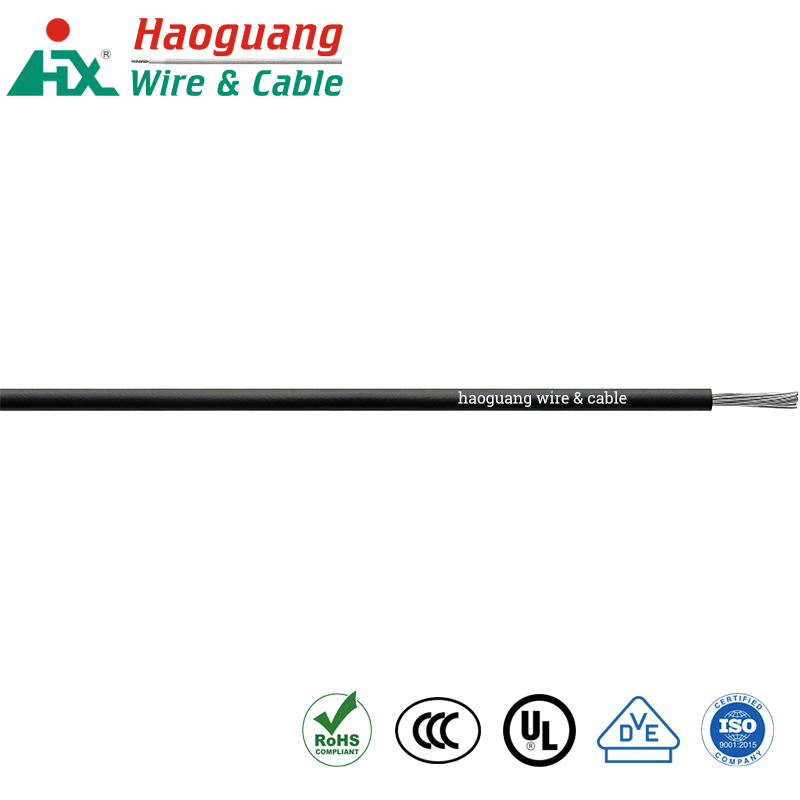

UL 3321 Cross-linked PE High Temperature Hook-up Wire

Haoguang UL 3321 Cross-linked PE High Temperature Hook-up Wire is designed for use in electric motor&generator, electronic,heating&cooling, lighting, switchgear and appliance applications.The insulation is irradiated cross-linked polyethylene. Rated for continuous use up to 150 ℃, voltage up to 600VAC, 750VDC. RoHS compliant.

Send Inquiry

Product Description

1.Introduction of UL 3321 Cross-linked PE High Temperature Hook-up Wire


Haoguang UL 3321 Cross-linked PE High Temperature Hook-up Wire is often used in electric motor&generator, electronic, heating&cooling, lighting, switchgear, cooking equipment and appliance applications. RoHS compliant. UL 3321 Hook Up Wire’s XLPE insulation has excellent resistance to abrasion, deformation, cut-through and chemical attack.




2.Parameter (Specification) of UL 3321 Cross-linked PE High Temperature Hook-up Wire


Rated Voltage: 600VAC /750VDC
Rated Temperature: +150℃
Standard: UL758
File No.:E192545

Spec.

AWG

Nominal Area

mm2

Structure of Conductor

No./mm

Insulation Thickness

mm

Overall Diameter

(mm)

Conductor Resistance at 20 Max

Ωkm

24

0.205

12/0.15

0.76

2.2

94.2

7/0.20

22

0.324

18/0.15

0.76

2.4

59.4

7/0.254

20

0.519

28/0.15

0.76

2.5

36.7

7/0.30

18

0.823

26/0.20

0.76

2.8

23.2

7/0.39

16

1.31

42/0.20

0.76

3.1

14.6

28/0.25

7/0.495

14

2.08

41/0.254

0.76

3.6

8.96

7/0.62



3.Feature of the UL 3321 Cross-linked PE High Temperature Hook-up Wire



1) Materials: High precision non-oxygen tinned copper.
2) Insulation: Cross-linked polyethylene
3) XLPE= Low Smoke Zero Halogen, Low smoke halogen free.




4.Detail of the UL 3321 Cross-linked PE High Temperature Hook-up Wire



1) Conditionally resistant to water oils,acids,alkali,Ozone.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Excellent resistance to abrasion, deformation,cut-through.
4) RoHS compliant, UL listed.
5) Neither cracking at the high temperature, nor would turn hard in the cold.
6) Brand: Haoguang.



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) What are the benefits of XLPE insulated cables ?

XLPE or Cross-linked polyethylene is a thermoset insulation material.Crosslinking polymers is a process which changes the molecular structure of the polymer chains so that they are more tightly bound together. Cross-linking the PE to become XLPE increases the temperature range of the insulation whilst maintaining the electrical properties



2) What certifications do you have?

Rohs, CE, CCC, UL, TUV,ISO9001.



3) Are you a manufactory?

Yes, our company is a professional wires and cables manufactory with many years of experience.
