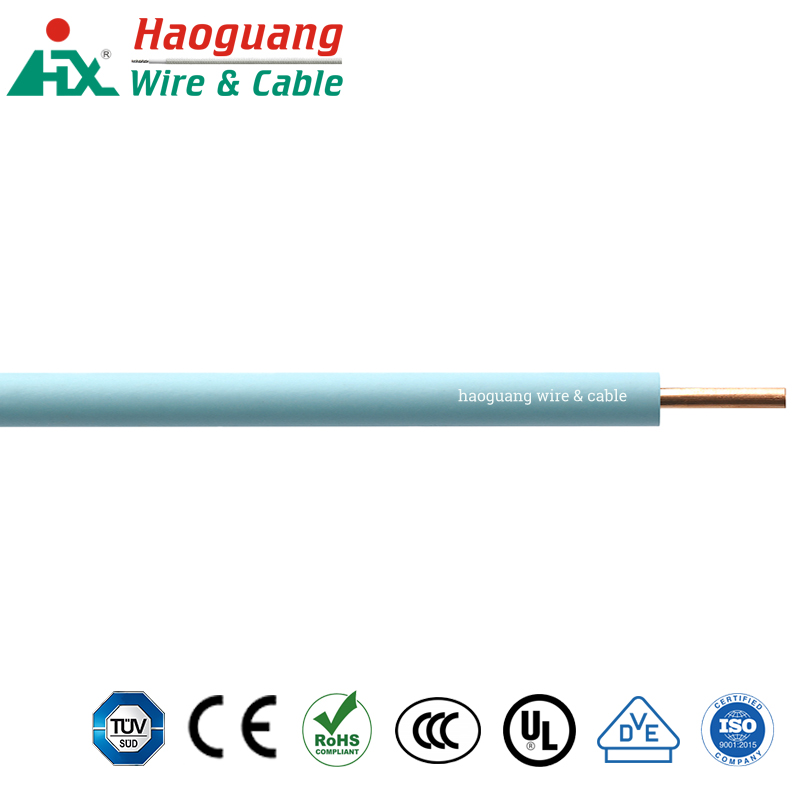

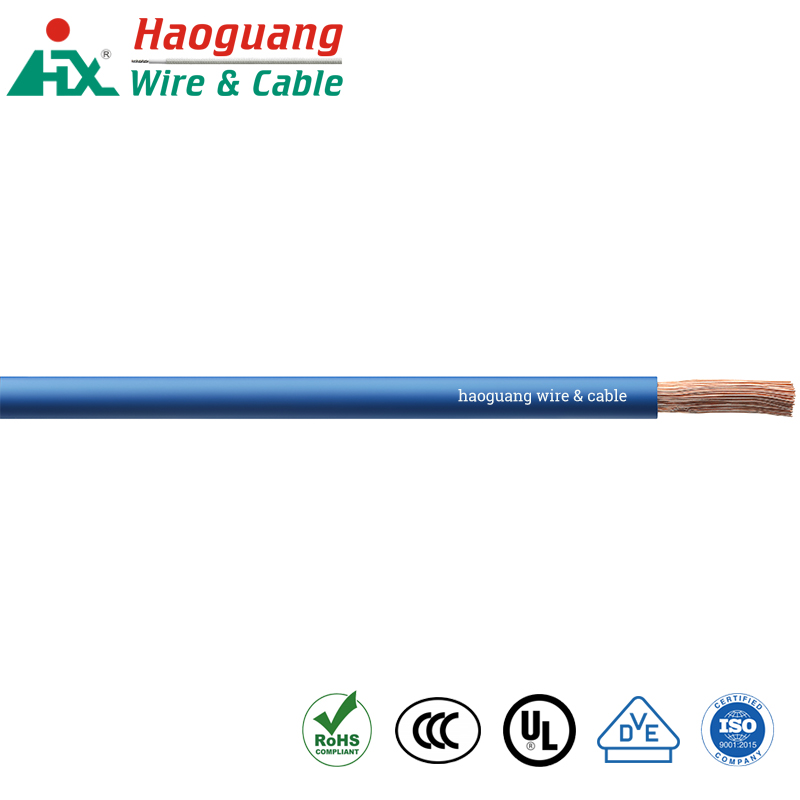

H05Z1-K H05Z1-U LSZH Insulated Single Core Cable

Haoguang H05Z1-K & H05Z1-U LSZH insulated single core cable is designed for power installation fixed wiring or flexible connection for electrical appliances and household appliances, for wiring of lamps,devices,switchgear cabinets and distribution boxes. The insulation material is halogen-free and free of other materials which could release toxic gases in the event of fire. The rated voltage up to 300/500V. 0.5 mm square to 1 mm square. LSOH = Low Smoke Zero Halogen.

Send Inquiry

Product Description

1.Product Introduction of H05Z1-K H05Z1-U VDE Approved LSZH hook-up Single Core Cable.


Haoguang H05Z1-K & H05Z1-U with LSZH insulated single core cable is designed for power installation fixed wiring or flexible connection for electrical appliances and household appliances,lightings, with rated voltage up to 300/500V. Oxygen free copper conductor, halogen-free to protect human life, the environment and material assets.Excellent performance,good quality and abrasion resistance.
Application:
building wires: used for installation in dry environments for wiring up lighting fixtures and units where valuable assets are to protected from further damage resulting from fire.
These cables may be installed on, in and beneath plaster, as well as in closed installation ducts. Installation in ducts situated on surfaces or built-in or in similar closed systems, especially indicated for situations in which a low emission of corrosive fumes and gases are required in the case of fires and when it is necessary to reduce the spreading of fires.
For more detailed information, check the EN 50565 Usage Guide for Cables with a rated voltage not exceeding 300/500V (U0 /U).


2.Product Parameter of H05Z1-K H05Z1-U VDE Approved LSZH hook-up Single Core Cable


Rated Voltage: 300V/500V
Rated Temperature: +70℃
Standard: DIN EN50525

Type

Conductor

Insulation Conductor

Electrical Characteristic

Nominal Area

mm

Structure of Conductor

No./mm

Insulation Thickness

mm

Overall Diameter

(mm)

Conductor Resistance at 20 ℃ Max

Min<

Max

Ω/km

H05Z1-U

0.5

1/0.80

0.6

1.9

2.3

36

0.75

1/0.98

0.6

2.1

2.5

24.5

1.0

1/1.13

0.6

2.2

2.7

18.1

H05Z1-K

0.5

28/0.15

0.6

2.1

2.5

39.0

16/0.20

0.75

24/0.20

0.6

2.2

2.7

26.0

42/0.15

1.0

32/0.20

0.6

2.4

2.8

19.5



3. Product Feature of H05Z1-K H05Z1-U VDE Approved LSZH hook-up Single Core Cable.

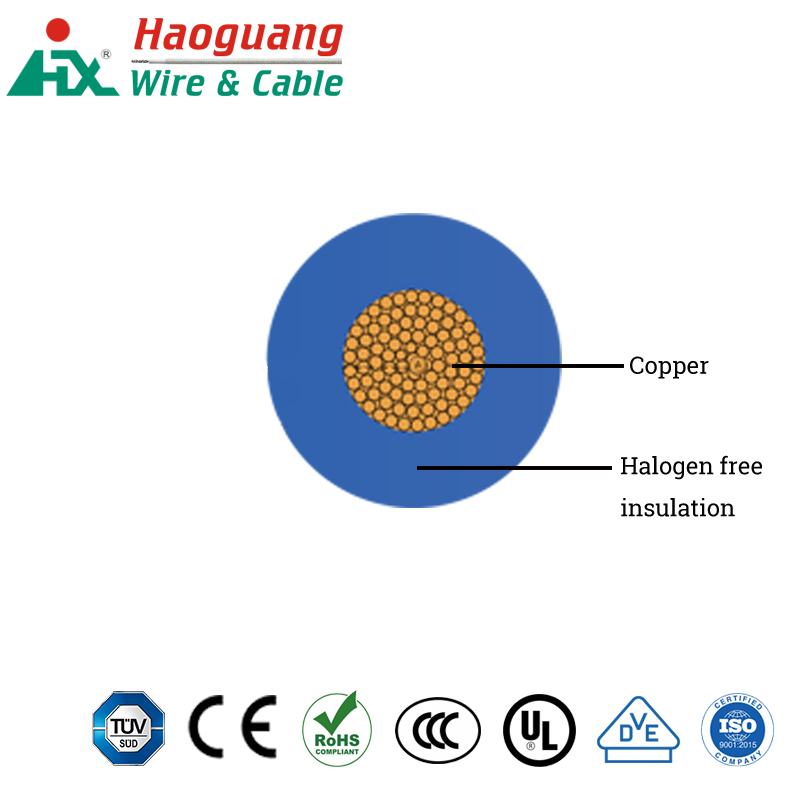

1) Materials: Stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: halogen free thermoplastic insulation,LSZH (low smoke zero halogen).
3) Resistance towards oil and chemicals, water resistant. suited for public places.

4. Product Details of H05Z1-K H05Z1-U VDE Approved LSZH hook-up Single Core Cable


1) High resistance to many different chemical substances chemical resistant.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Halogen free and low smoke. The insulation material is halogen-free and free of other materials which could release toxic gases in the event of fire. low smoke/low smoke density in the event of fire.
4) RoHS compliant.
5) CE certificated. TUV certificated.
6) Brand: Haoguang.
7) For use in homes, in switchboards. can lay in tubes, enviromentally friendly.
8) Fire retardant, flame retardant. low emission of corrosive gases, low smoke emission during fire.



5.Packaging & Delivery



1) Packaging Details:
Roll, Plastic reel/spool, Carton box
2) Port: Ningbo,Shanghai
3) Delivery: By Sea, By Air, By express.








6 FAQ:



1) What are the benefits of having LSZH cable?

LSZH compounds contain no halogens and instead rely on releasing water or other non-toxic compounds in order to put out a flame. As a result, they are safer for both people and the environment.



2) Could we provide the free sample for customer?

Yes, we could provide the free sample for customer for checking.



3) What is your payment method?

We usually receive payment by T/T 30% in advance, the balance before picking up the goods.
