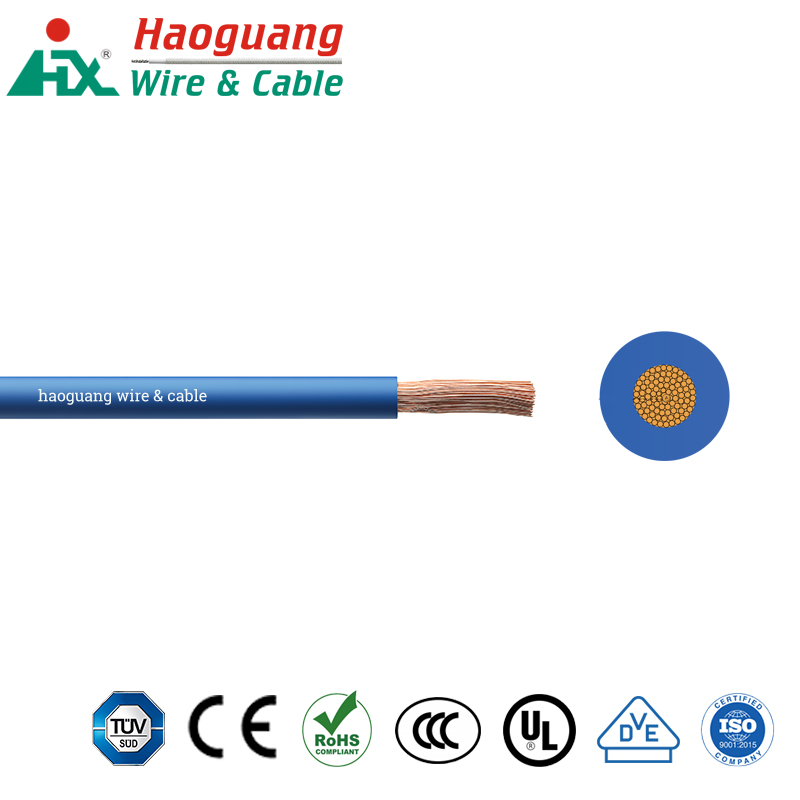

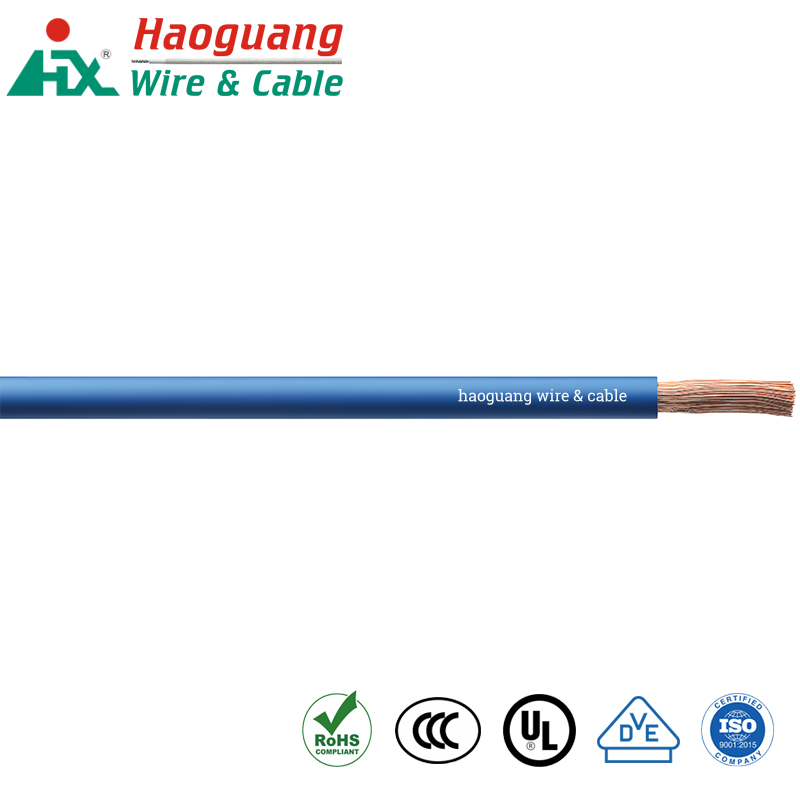

As the professional manufacture, we would like to provide you H07Z1-K H07Z1-U Flexible LSZH Insulated Single Core Cable. And we will offer you the best after-sale service and timely delivery.
Haoguang H07Z1-K & H07Z1-U LSZH insulated single core cable is designed for power installation fixed wiring or flexible connection for electrical appliances and household appliances, the insulation material is halogen-free and free of other materials which could release toxic gases in the event of fire. The rated voltage up to 450/750V.
1.Product Introduction of H07Z1-K H07Z1-U Flexible LSZH Insulated Single Core Cable.
Haoguang H05Z1-K & H05Z1-U with LSZH insulated single core cable is designed for power installation fixed wiring or flexible connection for electrical appliances and household appliances,lightings, with rated voltage up to 300/500V. Oxygen free copper conductor, halogen-free to protect human life, the environment and material assets.Excellent performance,good quality and abrasion resistance.
Application:
building wires: used for installation in dry environments for wiring up lighting fixtures and units where valuable assets are to protected from further damage resulting from fire.
These cables may be installed on, in and beneath plaster, as well as in closed installation ducts. Installation in ducts situated on surfaces or built-in or in similar closed systems, especially indicated for situations in which a low emission of corrosive fumes and gases are required in the case of fires and when it is necessary to reduce the spreading of fires.
For more detailed information, check the EN 50565 Usage Guide for Cables with a rated voltage not exceeding 300/500V (U0 /U).
2.Product Parameter of H07Z1-K H07Z1-U Flexible LSZH Insulated Single Core Cable.
Rated Voltage: 450V/700V
Rated Temperature: ＋70℃
Standard: DIN EN50525
|
Type |
Conductor |
Insulation Conductor |
Electrical Characteristic |
|||
|
Nominal Area |
Structure of Conductor |
Insulation Thickness |
Overall Diameter |
Conductor Resistance at 20 ℃ Max |
||
|
Min |
Max |
Ω／km |
||||
|
H07Z1-U |
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
12.1 |
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.41 |
|
|
4 |
1/2.25 |
0.8 |
3.6 |
4.4 |
4.61 |
|
|
6 |
1/2.76 |
0.8 |
4.1 |
5 |
3.08 |
|
|
10 |
1/3.56 |
1.0 |
5.3 |
6.4 |
1.83 |
|
|
H07Z1-K |
1.5 |
48/0.2 |
0.7 |
2.8 |
3.4 |
13.3 |
|
30/0.25 |
||||||
|
2.5 |
51/0.25 |
0.8 |
3.4 |
4.1 |
7.98 |
|
|
4 |
57/0.30 |
0.8 |
3.9 |
4.8 |
4.95 |
|
|
6 |
84/0.30 |
0.8 |
4.4 |
5.3 |
3.3 |
|
|
10 |
84/0.40 |
1.0 |
5.7 |
6.8 |
1.91 |
|
3. Product Feature of H07Z1-K H07Z1-U Flexible LSZH Insulated Single Core Cable.

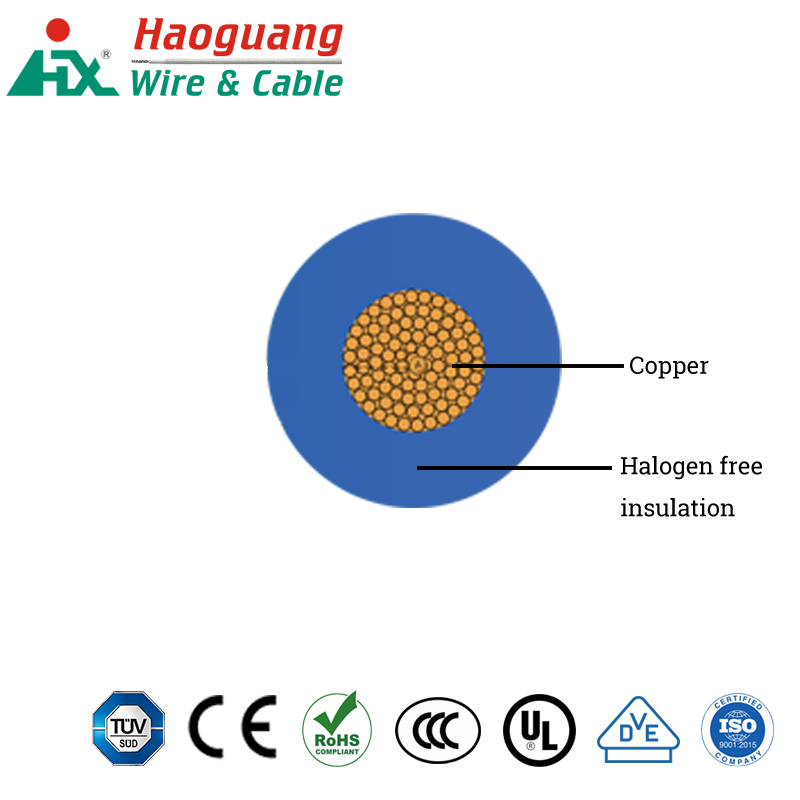

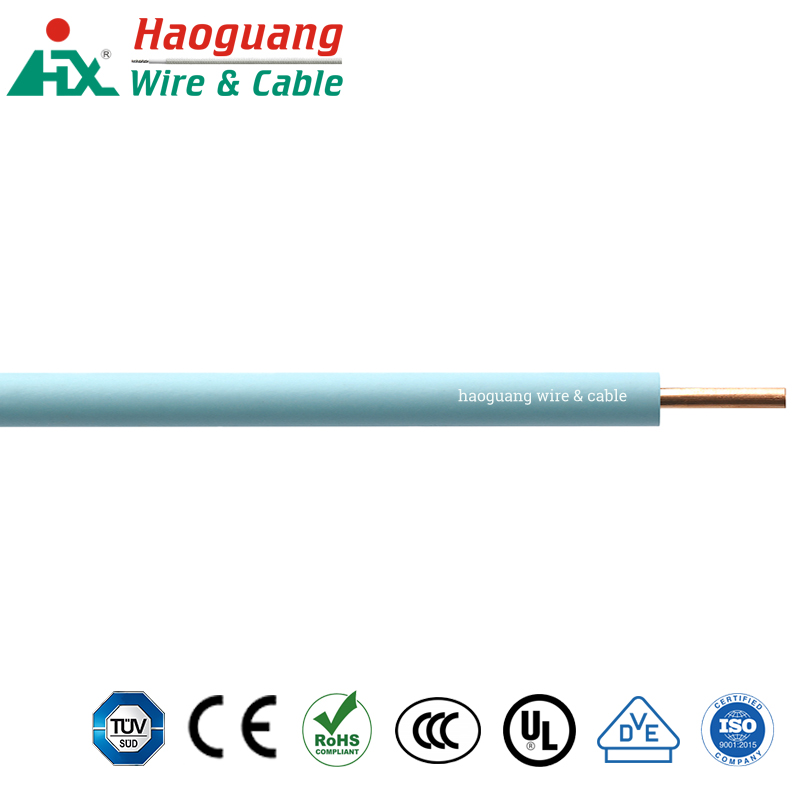

1) Materials: Cu(class 5), Solid or stranded bare copper, High precision non-oxygen tinned copper.
2) Insulation: halogen free thermoplastic insulation,LSZH (low smoke zero halogen).
3) Cable diameter ≤ 8 mm: 4 x outer diameter Approx. diameter > 8 to 12 mm: 5 x outer diameter Approx. diameter > 12 mm: 6 x outer diameter
Test Voltage : 2500
4) Resistance towards oil and chemicals, water resistant. suited for public places.
4. Product Details of H07Z1-K H07Z1-U LSZH Insulated Single Core Cable.
1) High resistance to many different chemical substances chemical resistant.
2) Standard sizes and custom color available upon request (black, red, yellow,orange,green,white…).
3) Halogen free and low smoke. The insulation material is halogen-free and free of other materials which could release toxic gases in the event of fire. low smoke/low smoke density in the event of fire.
4) RoHS compliant.
5) CE certificated. TUV certificated.
6) Brand: Haoguang.
7) For use in homes, in switchboards. can lay in tubes,enviromentally friendly.
8) Fire retardant, flame retardant. low emission of corrosive gases, low smoke emission during fire.
5.Packaging & Delivery
1) Packaging Details:
Roll, Plastic reel/spool, Carton box
2) Port: Ningbo,Shanghai
3) Delivery: By Sea, By Air, By express.
6 FAQ:
1) What is Low Smoke Zero Halogen?
Now the entire construction industry is particularly focused on fire safety right now, and electricians installing cable have a very important role to play. Use standard PVC cable by mistake, for example, and it will release thick black smoke and toxic gases when reacting to fire – a potentially life-threatening error.Smoke and fumes can be more of hazard than flame in the early stages of a fire when occupants are trying to escape – particularly in a public building, such as an airport, train station or hospital, where people may not be familiar with the layout of the building or the position of exits.
2) Which countries routinely use IEC cables?
When the International Electrotechnical Commission (IEC) member countries and affiliate members are added together the IEC family covers more than 97% of the world’s population. The members are the national committees of the respective country, responsible for setting national standards and guidelines
The IEC controls the publication of 212 standards associated with electric cables which come under the remit of the Technical Committee 20 of IEC. Of course, these countries do not exclusively use only IEC cable standards and have their own National types, however they do recognise many of the IEC standards and work towards the ongoing harmonisation of standards and test methods etc.
3) When I want customized products, how to do?
We have professional service team, OEM & customized service is welcome. Drawings / samples are required.
