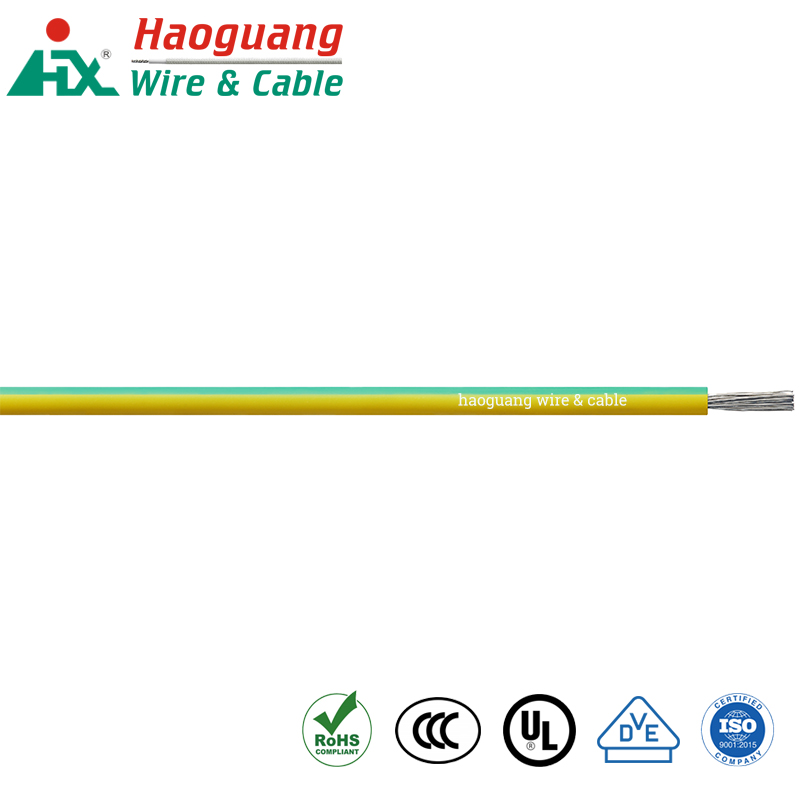

VDE H05S-K High Temperature Silicone Rubber Single Core Cable
  • VDE H05S-K High Temperature Silicone Rubber Single Core CableVDE H05S-K High Temperature Silicone Rubber Single Core Cable

VDE H05S-K High Temperature Silicone Rubber Single Core Cable

Haoguang VDE H05S-K high temperature silicone rubber single core cable is used where high flexibility is required and in high temperature conditions. The high grade corona resistant insulation material gives the H05S-K silicone rubber insulation wire excellent dielectric strength. Haoguang have 25 years of experience in wire and cable production. Our team can provide support selecting the optimal cable for your application. Pls contact us to discuss your requirements.

Send Inquiry

Product Description

1.Introduction of VDE H05S-K High Temperature Silicone Rubber Single Core Cable


Haoguang VDE H05S-K high temperature silicone rubber single core cable is used where high flexibility is required and in high temperature conditions. The high grade corona resistant insulation material gives the H05S-K silicone rubber insulation wire excellent dielectric strength.

Application:
This wire is suitable for inner wiring of electromechanics, household appliances, lighting fixtures, industrial machines, new energy products and electric vehicles.




2.Parameter (Specification) of VDE H05S-K High Temperature Silicone Rubber Single Core Cable


Rated Voltage: 300V / 500V
Rated Temperature: from -60℃ to 180℃
Standard: DIN EN50525

Conductor

Insulation conductor

Electrical Characteristic

Section

mm²

Conductor construction

NO. / mm

Insulation thickness

(mm)

Overall Diameter

(mm)

Conductor Resistance at 20 ℃ Max

Min

Max

Ωkm

0.5

28/0.15

0.8

2.4

3.1

40.1

16/0.20

0.75

24/0.2

0.8

2.6

3.2

26.7

42/0.15

1.0

32/0.2

0.8

2.7

3.4

20.0

1.5

48/0.2

0.9

3.2

4.0

13.7

2.5

51/0.25

1.0

3.8

4.7

8.21



3.Feature of the VDE H05S-K High Temperature Silicone Rubber Single Core Cable



1) Materials: bare copper , flexible tinned copper.
2) Insulation: silicone rubber.
3) High/Low Temperature Resistance: can be used in -60℃ to 180℃.
4) Excellent aging resistance, even under extreme conditions.
5) Perform well under fire conditions and are halogen free and low in smoke.




4.Detail of the VDE H05S-K High Temperature Silicone Rubber Single Core Cable



1)The cable conductor type is standard 99.99% OFC (Oxygen free copper) and tin plated copper.
2) Outstanding abrasion resistance.
3) High resistance to many different chemical substances chemical resistant.
4) Standard sizes and custom color available upon request.
5) Brand: Haoguang



5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: Ningbo



Delivery: By Sea, By Air, By express.








6 FAQ:



1) When I want customized products, how to do ?

We have professional service team, OEM & customized service is welcome. Drawings / samples are required.



2) Is the quality of your products guaranteed?

Yes, the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced. We strictly follow the international standards and customers’ requirements.



3) What’s your Minimum Order Quantity?

It depend, pls contact us for detail information.



7 FACTORY :
